HVAC Systems Guide: Types & Professional Installation Tips

A guy in Buckhead just paid $8,200 for a 3-ton Carrier system that'll never keep his house comfortable — and he doesn't know it yet. The unit's fine. The problem? His contractor paired it with 30-year-old ductwork that leaks like a screen door on a submarine. I see this twice a month.

Let's fix that.

Understanding the Main HVAC System Types

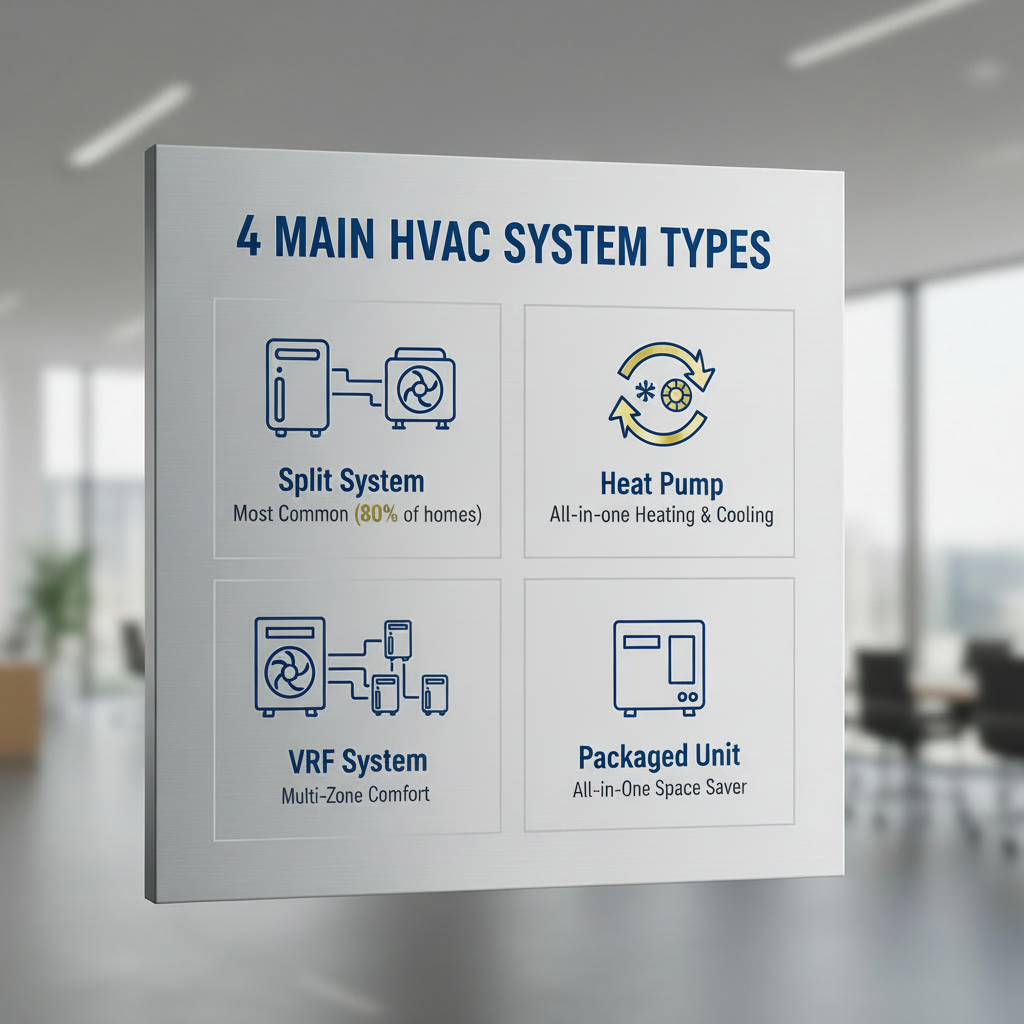

You'll run into four main types in residential work: **split systems** (probably 8 out of 10 houses I walk into), **heat pumps** (one unit does heating and cooling), **packaged units** (everything crammed in one box when there's no indoor space), and **VRF systems** (multi-zone setups for bigger homes with complicated layouts).

Which one fits your house? Depends on your climate, your floor plan, and — let's be honest — what you can actually afford to spend.

Split Systems: The Reliable Choice for Most Homes

So yeah, split systems show up in about 8 out of 10 homes I walk into. There's a reason for that — they work, they're not outrageously expensive, and technicians actually know how to fix them when something breaks at 9 PM on a Saturday.

The indoor unit (your air handler) sits in a closet or attic. Outdoor unit (condenser) goes on a concrete pad next to your house. They talk to each other through refrigerant lines and some wiring. Pretty straightforward.

**What makes them popular:**

• The noisy stuff lives outside, so your living room stays quiet
• You can get 'em anywhere from 14 SEER (basic) to 20+ SEER (fancy)
• They fit into most existing houses without tearing walls apart
• Expect 15-20 years if you don't ignore maintenance

Last month? Installed a Carrier 16 SEER for the Johnsons. Their power bill dropped $47 the first month. The $4,800 system should pay for itself in around six years — probably less if rates keep climbing like they have been. [[Link to: "Understanding HVAC Efficiency Ratings"]]

Heat Pumps: Year-Round Comfort and Efficiency

Look — here's what most people don't get about heat pumps — they're basically air conditioners that learned to run backward. One unit handles both heating and cooling, which seems too good to be true until you see your first winter utility bill. Modern units from Trane and Lennox work surprisingly well even when it's 15°F outside (thanks to scroll compressor tech that's come a long way).

The money part gets interesting. Many utility companies will literally hand you $1,500 to $3,000 in rebates just for installing one. I've seen homeowners in Marietta get their entire installation subsidized because Georgia Power was pushing heat pump adoption that hard. Can't beat that kind of incentive. Learn more about their energy-saving capabilities in our guide to [HVAC System Efficiency Ratings](link-to-hvac-efficiency-ratings-article).

VRF Systems: The Ultimate in Zoned Comfort and Control

Variable Refrigerant Flow systems are basically like having five mini-splits controlled by one brain. One outdoor unit. Multiple indoor units scattered through your house. And here's the wild part — the system can heat your freezing basement office while simultaneously cooling your sun-baked master bedroom.

Mitsubishi and Daikin own this space.

*I upgraded a 3,200 sq ft colonial in Roswell last year — classic problem of scorching upstairs bedrooms and a basement that felt like a meat locker.* We dropped in a Mitsubishi VRF with five indoor units. The family now controls every zone independently, and their power bill dropped 38%. The homeowner literally called it "life-changing" (his words, not mine, though I'll take the compliment).

These systems aren't cheap. Figure $12,000-$18,000 for most installations. But if you've got a larger home with serious temperature imbalances? The comfort improvement alone justifies the cost.

Packaged Units: Compact and Powerful Solutions

Think of packaged units as HVAC-in-a-box. Compressor, condenser, evaporator, air handler — everything's crammed into one metal cabinet, usually sitting on your roof or a concrete pad next to the house.

Perfect for homes where there's zero room for a closet-sized air handler.

I installed a Rheem package unit for a guy in Sandy Springs whose basement was completely finished — no mechanical room, no attic access worth mentioning. The unit's been running six years now without a hiccup. Rheem and Carrier both make solid packaged systems that'll give you 15-20 years if you don't neglect them.

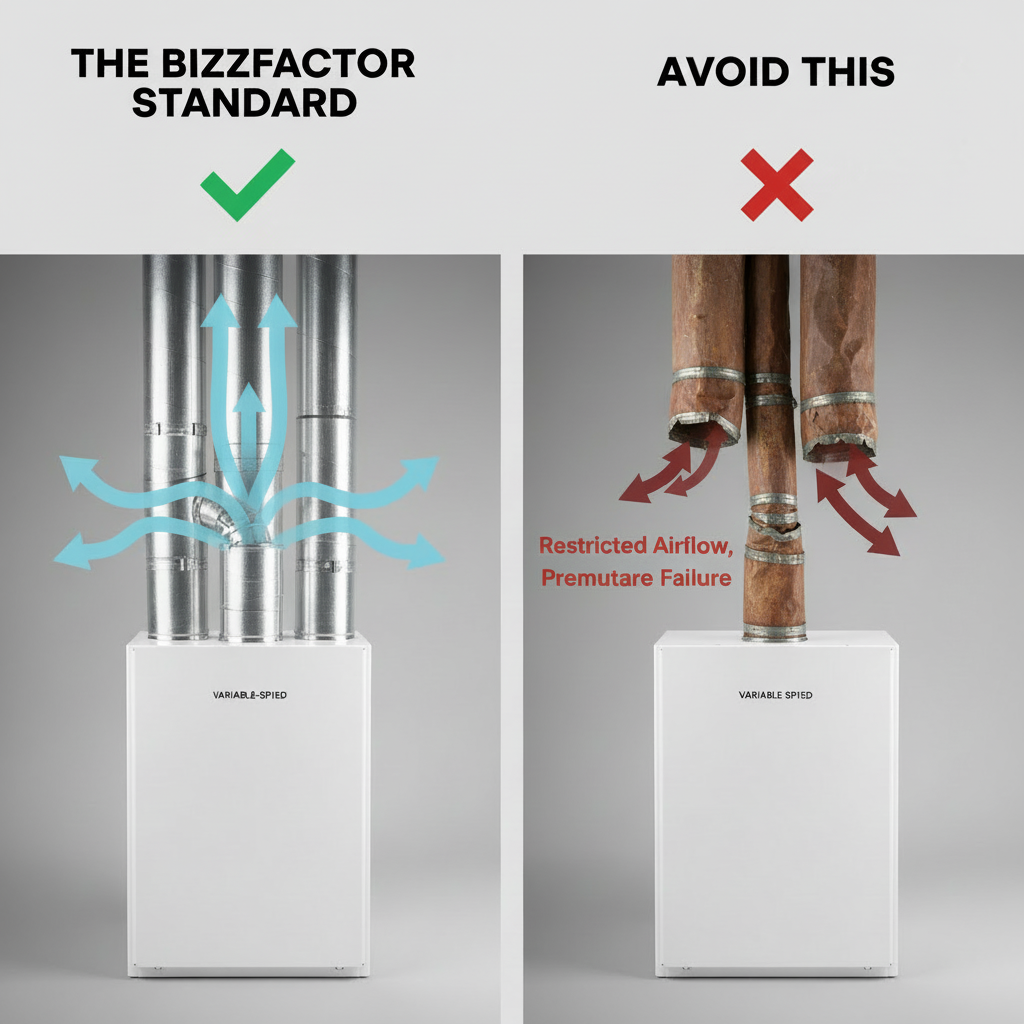

**Critical Installation Warning: Don't Compromise on Ductwork!**

Here's where contractors screw people over (accidentally or otherwise): they pair a brand-new high-efficiency system with ductwork that's been leaking since the Clinton administration. It's like dropping a Ferrari engine into a '92 Civic with three bad tires and expecting it to handle like a race car.

Won't happen.

Your brand-new 18 SEER unit will underperform, your upstairs will stay hot, and the system will probably die five years early from overwork. Always — *always* — demand a **static pressure test** before installation. This test measures airflow resistance and tells you if your ducts can actually handle the new equipment. Most contractors skip this because it adds 45 minutes to the job and might reveal problems they'd rather ignore.

Don't let them. For more on this, check out our insights on [Professional HVAC Installation Best Practices](link-to-hvac-installation-best-practices-article).

Selecting the Right HVAC Contractor

Your contractor matters more than the brand name on the condenser. I'm biased toward established local shops over big franchises — local guys live and die by their reputation in the community, which usually translates to better service and fairer pricing. Franchises have corporate oversight, sure, but you're often paying for their marketing budget instead of better craftsmanship.

Platforms like 1build can connect you with contractors, but they don't guarantee the quality of the work. That's on you to vet.

Targeting the Optimal Efficiency Rating

Don't get hypnotized by SEER numbers. Jumping from 16 SEER to 22 SEER sounds impressive until you do the math — the payback period often outlasts the unit's lifespan by 3-5 years. That's money you're never getting back.

Better move? Take those extra thousands and dump them into attic insulation or air sealing. I've seen $1,200 spent on insulation deliver bigger monthly savings than a $4,000 SEER upgrade. That's the real issue. The comfort improvement is immediate too — no more ice-cold bedrooms in winter or blast-furnace afternoons in July. Discover more about managing energy consumption in our guide to [Home Energy Efficiency Upgrades](link-to-home-energy-efficiency-upgrades-article).

Essential HVAC System Components

**Five parts** determine whether your system runs eighteen years or croaks in seven. I've replaced enough of these to know where the money goes.

**Compressors** do the heavy lifting — they pressurize refrigerant and keep the whole cooling cycle moving. When they fail? You're looking at $1,400-$2,200 for replacement (I've written that estimate more times than I care to remember). Most expensive single component in your system.

**Heat exchangers** are metal chambers where thermal energy transfers between refrigerant and air. In furnaces, they're the workhorses that actually warm your house. In AC units, they pull heat out of your indoor air. These rarely fail, but when they crack in a furnace, you've got a carbon monoxide risk — that's why the annual inspection exists.

**Refrigerant lines** — copper tubes carrying coolant between your indoor and outdoor units. Get the sizing wrong and your efficiency drops 20% immediately (doesn't matter what the sticker on the condenser claims).

**Air handlers** contain the blower motor that moves conditioned air through your ductwork. Without this, you've just got an expensive box making cold air that sits there doing nothing.

**Filtration systems** catch debris before it turns your evaporator coil into a science experiment. Also keeps your family from breathing construction dust and dog hair.

Understanding these five pieces means you'll know when a tech's padding their quote.

Compressors: The Heart of Your HVAC System

Look — look — the compressor is what makes the whole refrigeration cycle work, and it runs *constantly* during summer. That's why it fails more than anything else. **Scroll compressors** (which most modern units use) are way quieter and last longer than the old reciprocating piston-style compressors. Copeland and Bristol make the best scroll compressors — when I'm spec'ing a system, I specifically look for units with Copeland ZP series compressors.

Heat Exchangers: Thermal Energy Transfer Masters

Modern condensing furnaces use *two* heat exchangers — primary ones hitting 90%+ efficiency, then secondary exchangers grabbing even more heat from exhaust before it disappears up the flue. That double-pass extraction is how you get those 95-98% AFUE ratings. They're wringing every last BTU out of your gas dollar.

Cracks in heat exchangers? Serious business. Carbon monoxide doesn't mess around.

That's why you get annual inspections.

Refrigerant Lines: The System's Circulatory Network

Size these copper lines wrong and you've just killed 20% of your system's efficiency before it even starts. ACCA Manual S has all the sizing charts, but most experienced techs know the line sets cold: 3/8" and 5/8" copper for smaller units, stepping up to 1/2" and 7/8" for higher tonnage.

I walked into a DIY install last summer where the homeowner used undersized refrigerant lines because the hardware store guy told him they'd work fine. The suction line was literally sweating on 95-degree days — refrigerant velocity was completely wrong. System couldn't keep up. Had to re-pipe the whole thing.

Air Handlers: Efficient Air Distribution

So your air handler is the muscle that actually pushes conditioned air around your house. Without proper airflow, that expensive outdoor unit is just spinning its wheels. Premium units from Carrier and Trane come with **variable-speed motors** that adjust automatically based on demand — no more blasting at 100% when you only need 40%.

Prevents those annoying hot spots in the master bedroom too. And cold spots in the basement. Variable-speed is worth the upcharge if you can swing it.

Filtration Systems: Guardians of Indoor Air Quality

Effective filters do two jobs: protect your equipment from becoming a dust bunny, and keep your family from breathing pollen and construction debris. **MERV ratings** measure particle capture, but there's a catch — higher-rated filters clog faster and choke airflow if you don't stay on top of replacements.

We usually recommend MERV 8-11 filters for most homes. MERV 13+ sounds impressive, but unless someone's got serious allergies, you're just making your blower motor work harder for marginal gains. Not worth it.

Deciphering HVAC Efficiency Ratings

Three acronyms show up on every equipment spec sheet, and they actually matter.

**SEER** measures cooling efficiency. Higher number = lower summer electric bills. That's it.

**AFUE** tells you what percentage of your natural gas actually heats your house versus disappearing up the chimney. 80% AFUE means 20 cents of every dollar you spend goes straight outside (ouch).

**HSPF** rates heat pumps specifically when they're in heating mode. Different from SEER, which tracks cooling performance.

And then there's **Energy Star** — which just confirms a unit beats federal minimums. Nothing more, nothing less. It's like a participation trophy that happens to save you money.

These ratings predict your monthly costs way better than any sales pitch about "whisper-quiet operation" or "contractor-grade quality."

SEER: Understanding Cooling Efficiency

**SEER** stands for Seasonal Energy Efficiency Ratio, and it's basically miles-per-gallon for air conditioners. Federal minimums sit at 14 SEER in northern states, 15 SEER down south (where we actually use AC more than three months a year). Premium
