Masonry Chimney Repair: Addressing common structural and functional issues in brick and mortar chimneys to ensure safety and efficiency. Troubleshooting & Fixes (2024 Guide)

    A veteran tech's guide to masonry chimney repair. Learn to spot symptoms like cracked bricks and leaks, understand causes, and see DIY vs. pro costs for fixes.

    DIY Fix: $5–$20
    Pro Help: $150–$500
    Time: 15–120 min

    Quick Answer

    Okay, so here's the quick version on your chimney problems. Nine times out of ten, it's water getting in somewhere it shouldn't. You'll see cracked bricks, crumbly mortar, or white stains. If it's a small, superficial crack you can easily reach, you might patch it yourself for under $100. But if you're seeing water inside, the chimney is visibly leaning, you observe significant damage like large cracks or missing bricks, or you need to get high up on the roof, just call a professional. A real fix could be a few hundred for sealing or several thousands for a rebuild. Don't mess around with this stuff; your safety and the integrity of your house depend on it.

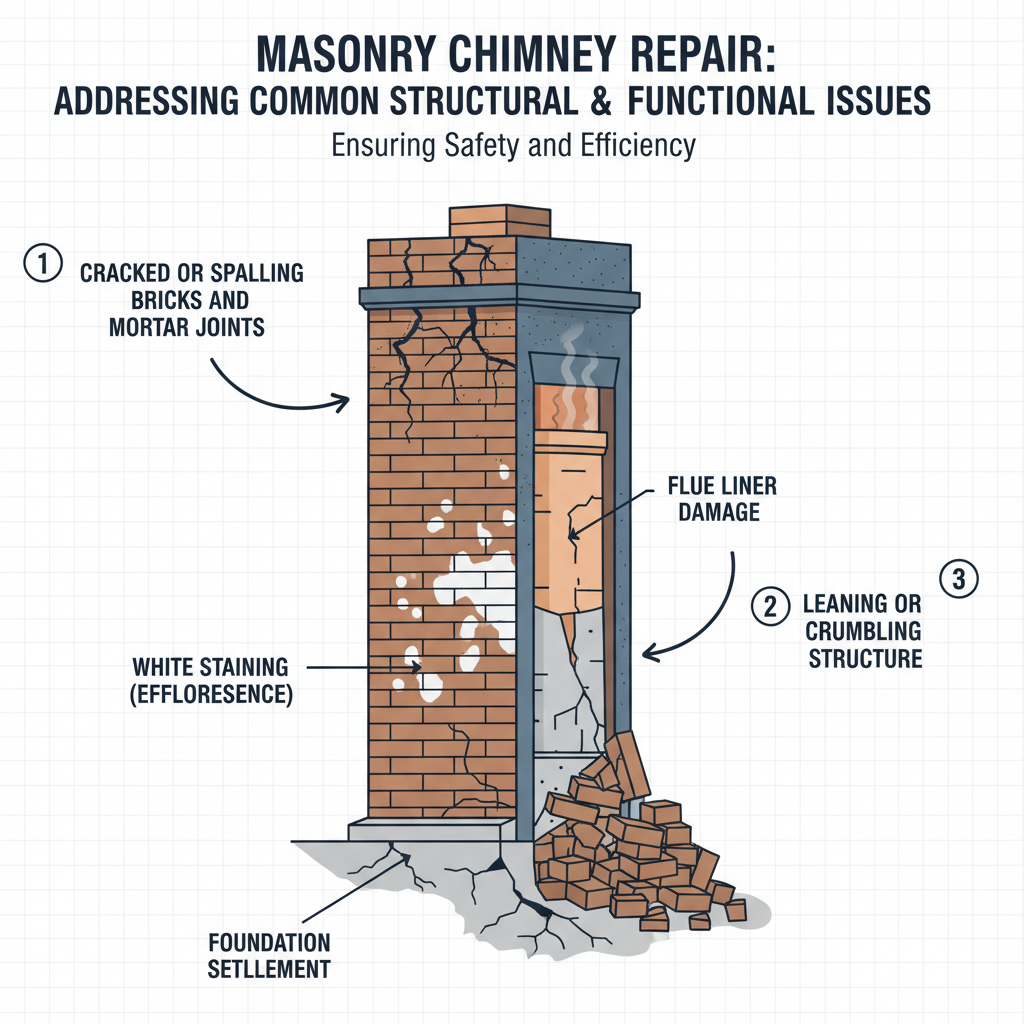

    Masonry Chimney Repair: Addressing common structural and functional issues in brick and mortar chimneys to ensure safety and efficiency. Troubleshooting & Fixes (2024 Guide) visual diagram
    Visual guide for diagnosing key fob issues

    Common Symptoms

    Cracked or spalling bricks and mortar joints
    White staining on the exterior (efflorescence)
    Leaning or crumbling chimney structure
    Water leaks inside the home near the chimney
    Smoke entering the house
    Damaged or deteriorating chimney crown
    Rusting on metal components like the damper
    Animal noises or nests in the flue

    Possible Causes

    Water damage from freeze-thaw cycles
    Improper construction or weak mortar mix
    Cracked or missing flue liner allowing acid/heat damage
    Age and general deterioration of materials
    Lack of a proper chimney cap allowing water and debris entry
    Foundation settlement causing structural shifts
    Damage from a previous chimney fire

    Step-by-Step Diagnosis

    1

    Step 1

    Exterior visual inspection from the ground (use binoculars) for leaning, major cracks, or spalling.

    2

    Step 2

    Close-up roof-level inspection of the chimney crown, flashing, bricks, and mortar joints.

    3

    Step 3

    Test mortar joint integrity by gently poking with a screwdriver to check for softness or crumbling.

    4

    Step 4

    Interior inspection in the attic and around the fireplace for water stains, soot, or cracks.

    5

    Step 5

    Check the operation and condition of the damper for rust and full movement.

    6

    Step 6

    Use a strong flashlight to inspect the visible parts of the flue liner from the top and bottom for cracks or blockages.

    7

    Step 7

    For definitive answers on flue integrity, a professional camera inspection (Level 2) is required.

    Masonry Chimney Repair: Addressing common structural and functional issues in brick and mortar chimneys to ensure safety and efficiency. Troubleshooting & Fixes (2024 Guide)
    Key fob troubleshooting and repair overview

    DIY vs Professional Costs

    Minor Mortar Tuckpointing (small area)
    DIY$50 - $100
    Pro$500 - $1,500
    Time1-4 hours
    Applying Waterproof Sealer
    DIY$75 - $150
    Pro$300 - $800
    Time2-3 hours
    Replacing a Chimney Cap
    DIY$100 - $400
    Pro$300 - $800
    Time1 hour
    Chimney Crown Repair/Rebuild
    DIY$100 - $250 (sealant only)
    Pro$500 - $3,000
    Time1-2 days
    Chimney Relining (Stainless Steel)
    DIYNot a DIY job
    Pro$3,000 - $8,000+
    Time1-3 days
    Full Chimney Rebuild
    DIYNot a DIY job
    Pro$6,000 - $20,000+
    Time1-2 weeks

    When to Call a Professional Chimney

    • The chimney is visibly leaning or tilting.
    • There are active water leaks inside your home near the chimney or fireplace.
    • You suspect you have had a chimney fire (roaring noise, intense heat).
    • An inspection reveals a cracked, damaged, or missing flue liner.
    • Large sections of brick are spalling or entire bricks are loose/missing.
    • The repair requires working on a steep roof or needs scaffolding.
    • The mortar is crumbling throughout large areas, requiring extensive tuckpointing.
    • You notice persistent smoke or strong odors entering your home when a fire is lit.

    Prevention Tips

    • Schedule an annual chimney inspection and cleaning with a CSIA-certified professional.
    • Install a high-quality chimney cap with a spark arrestor to keep out rain and animals.
    • Apply a vapor-permeable water repellent to the chimney exterior every 5-10 years.
    • Repair minor mortar or crown cracks immediately to prevent water intrusion.
    • Burn only dry, seasoned hardwood to minimize creosote buildup and acid damage.
    • Ensure the flashing where the chimney and roof meet is properly installed and sealed.
    Masonry Chimney Repair: Addressing common structural and functional issues in brick and mortar chimneys to ensure safety and efficiency. Troubleshooting & Fixes (2024 Guide) professional repair detail
    Professional key fob repair and programming
