Water Seeping Under Shower Tile (Troubleshooting & Fixes from a 25-Year Pro)

    A veteran tile guy explains why water is seeping under your shower tile. Learn the signs of hidden damage, how to find the leak, and when to call a pro.

    DIY Fix: $5–$20
    Pro Help: $150–$500
    Time: 15–120 min

    Quick Answer

    Okay, so here's the quick version. If you've got water getting under your shower tile, ninety percent of the time it's just failed caulk or cracked grout. Simple stuff. You can fix that yourself for under 50 bucks. But that other ten percent... that's the scary stuff, like a busted shower pan or a failed waterproofing membrane behind the wall. That's a full tear-out, and you're looking at thousands. The key is finding out which one you've got before that little leak turns your subfloor into oatmeal. Don't ignore it.

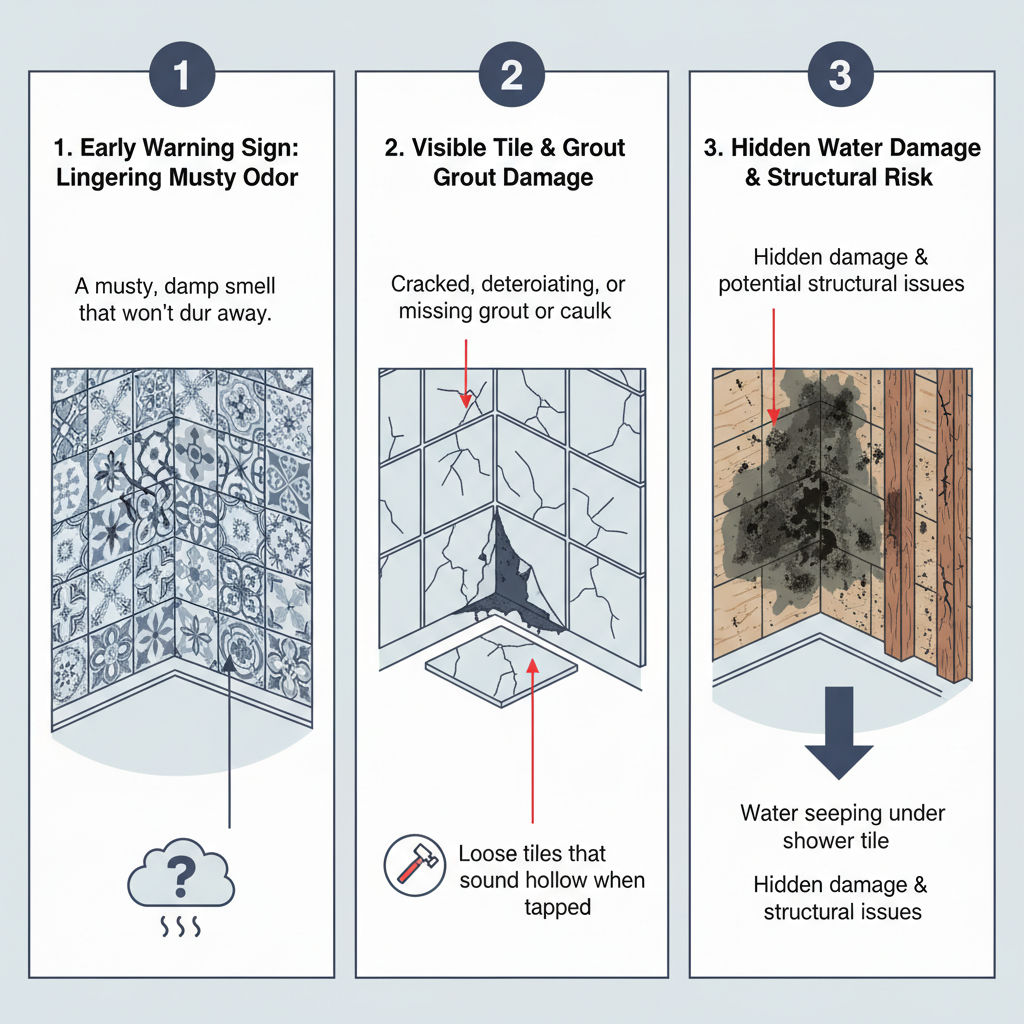

    Water Seeping Under Shower Tile (Troubleshooting & Fixes from a 25-Year Pro) visual diagram
    Visual guide for diagnosing key fob issues

    Common Symptoms

    A musty, damp smell that won't go away.
    Cracked, deteriorating, or missing grout or caulk.
    Loose tiles that sound hollow when tapped.
    Water stains, peeling paint, or swollen baseboards on adjacent walls.
    Brown or yellow water stains on the ceiling of the room below the shower.
    A soft, spongy, or 'squishy' feeling in the floor inside or directly outside the shower.

    Possible Causes

    Failed caulk or grout: The most common cause, allowing water to penetrate the seams and corners of the shower.
    Failed waterproofing membrane: A puncture or improperly sealed seam in the hidden waterproof layer behind the tile and backer board.
    Cracked or leaking shower pan: A failure in the shower base itself or its connection to the drain, allowing water to escape underneath.
    Leaking plumbing fixtures: A slow drip from the shower valve or pipes hidden inside the wall.

    Step-by-Step Diagnosis

    1

    Step 1

    Thorough Visual Inspection: Use a flashlight to examine every inch of grout and caulk for cracks, gaps, or signs of deterioration.

    2

    Step 2

    Isolate and Test Specific Areas: Use a spray bottle to wet suspect areas of grout or caulk and observe if leaks outside the shower worsen.

    3

    Step 3

    Conduct a Shower Pan 'Flood Test': Plug the drain with an inflatable test plug, fill the shower base with 2 inches of water, mark the level, and wait several hours to see if the water level drops.

    4

    Step 4

    Isolate and Test the Walls: If the pan test passes, use a handheld shower head to spray specific sections of the shower walls for 15-20 minutes at a time to identify the source of the leak.

    5

    Step 5

    Inspect Internal Plumbing: As a last resort, open or create an access panel to visually inspect the shower valve and pipes for slow drips or leaks.

    Water Seeping Under Shower Tile (Troubleshooting & Fixes from a 25-Year Pro)
    Key fob troubleshooting and repair overview

    DIY vs Professional Costs

    Re-caulking the Shower
    DIY$15-40
    Pro$150 - $350
    Time1-2 hours
    Patching Grout & Sealing
    DIY$25-75
    Pro$250 - $500
    Time2-4 hours
    Replacing a Few Cracked Tiles
    DIY$50-150
    Pro$500 - $1,200+
    Time4-8 hours
    Full Shower Pan & Waterproofing Rebuild
    DIYNot Recommended
    Pro$2,500 - $8,000+
    Time1-2 weeks

    When to Call a Professional Tile

    • The floor inside or outside the shower feels soft, spongy, or bouncy.
    • You discover water stains on the ceiling of the room directly below the bathroom.
    • Your shower pan 'flood test' fails, indicating a leak in the base of the shower.
    • You have widespread or recurring mold growth that you can't control.
    • You've already tried re-caulking and re-grouting the obvious spots, but the leak persists.

    Prevention Tips

    • Inspect your shower's caulk and grout lines twice a year for any signs of cracking or shrinking and repair immediately.
    • Run your bathroom exhaust fan during every shower and for 15-20 minutes afterward to reduce humidity.
    • Apply a quality penetrating grout sealer annually to help repel water.
    • Use a squeegee to wipe down tile walls and glass doors after each use to promote faster drying.
    • Avoid using harsh, abrasive, or acidic cleaners that can degrade grout and caulk over time.

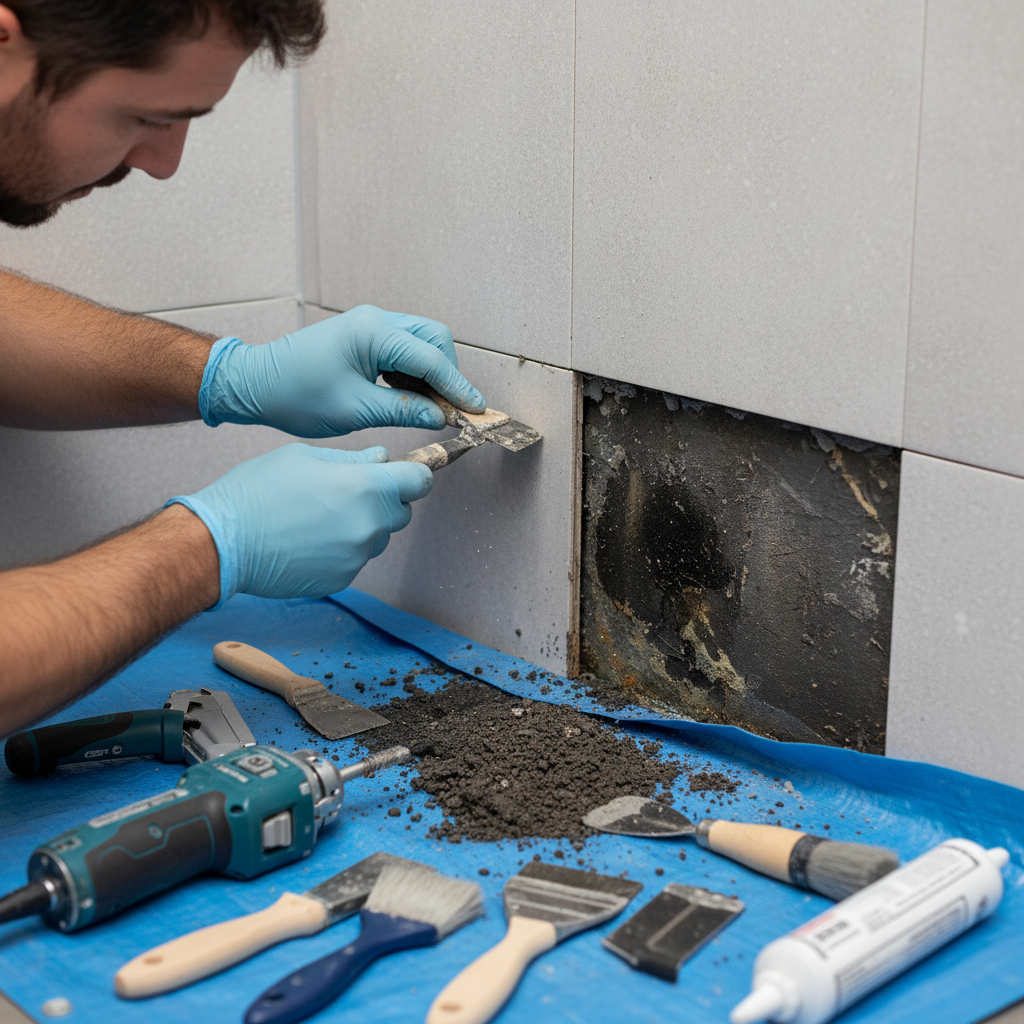

    Water Seeping Under Shower Tile (Troubleshooting & Fixes from a 25-Year Pro) professional repair detail
